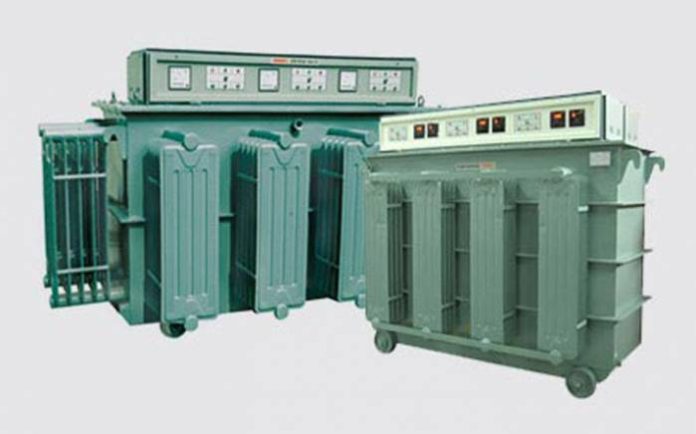

A Servo Stabilizer is a Servo engine tried adjustment framework that conveys ideal voltage flexibly utilizing a Buck/Boost transformer promoter that catches voltage changes from the information and controls current to the right yield. An AC synchronous engine changes voltage a clockwise or anticlockwise way and deals with the yield voltage with segments like control card, dimmer, comparator, semiconductors, mocs, and so forth.

Principle Components and their Functioning

There are seven principal parts in a servo voltage stabilizer:-

  • Dimmer (Variable Transformer)
  • Carbon Brush
  • Servomotor – Synchronizing Motors
  • Buck-Boost Transformer (Series Transformer)
  • Contactor or Relay
  • MCB, MCCB
  • Electronic Circuit

Dimmer (Variable Transformer) – It typically is round fit as a fiddle. Silicon CRGO toroidal center is utilized for the base, and copper wire with a particular turn proportion per the limit is utilized. The dimmer’s fundamental intention is to increment or reduce the voltage, which the buck-support transformer takes care of. Half of the yield voltage is expanded or diminished by dimmer as it were.

Let us take a model: If the information voltage is 160V, the dimmer will expand it to 190V, and Buck-Boost Transformer will finish the remainder of the 30V (since 220V is needed to run any single-stage load).

Carbon Brush – This is a moving piece of the servo stabilizer. It is fitted in the pole to connect with the dimmer. If the information voltage variety is tenacious, this carbon brush will eradicate early. The client needs to supplant it regularly. That is the reason servo stabilizer makers should utilize the best quality carbon brush.

Servomotor (Synchronizing Motors) – Servomotor, as the name recommends, is the servo stabilizer’s focal piece. The engine turns the arm associated with the clockwise dimmer anticlockwise bearing as per the info voltage.

For what reason do I utilize a Servo stabilizer?

A Servo Stabilizer is a voltage fixing framework and an excellent energy gadget invaluable over the conventional hand-off based stabilizer. We have a significant few advantages of utilizing Servo:

  • High voltage adjustment exactness with the yield of ±1 voltage remedy.
  • Switchless framework to change the fluctuating voltage at wanted levels.
  • High burden limit that supports up to 5000 KVA or above.
  • Voltage depends on the progression of less remedy.
  • Ideal adjustment for clinics best for mind-boggling hardware like X-beam machines, CAT sweeps, radiation, and demonstrative gear.
  • Wide working zone from schools, workplaces, homes, and businesses.
  • Oil cooled and air-cooled transformers that fit your financial plan.

Ultimately, Servo stands the champ on account of its outstanding presentation and more expanded life highlights.
